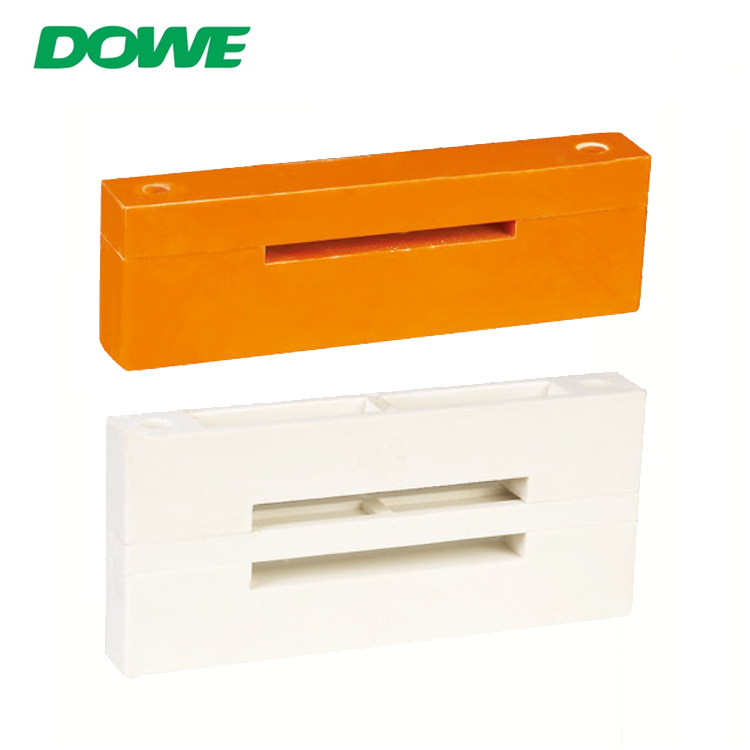

busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
| model | A | B | C | D | E | Applicable copper bar | remarks |
| AMJ2C-4x40/1 | 41 | 3.8 | 150 | 120 | 33 | 4x40 | |
| AMJ2C-5x40/1 | 41 | 4.8 | 5x40 | ||||
| AMJ2C-6x40/1 | 41 | 5.8 | 6x40 | ||||
| AMJ2C-5x50/1 | 51 | 4.8 | 5x50 | ||||
| AMJ2C-6x50/1 | 51 | 5.8 | 6x50 | ||||
| AMJ2C-10x50/1 | 51 | 9.8 | 10x50 | ||||
| AMJ2C-6x60/1 | 61 | 5.8 | 6x60 | ||||
| AMJ2C-8x60/1 | 61 | 7.8 | 8x60 | ||||
| AMJ2C-10x60/1 | 61 | 9.8 | 150 | 120 | 33 | 10x60 | |
| AMJ2C-6x80/1 | 81 | 5.8 | 170 | 140 | 35 | 6x80 | |
| AMJ2C-8x80/1 | 81 | 7.8 | 6x80 | ||||
| AMJ2C-10x80/1 | 81 | 9.8 | 10x80 | ||||
| AMJ2C-8x100/1 | 101 | 7.8 | 190 | 160 | 37 | 8x100 | Single row and double row |
| AMJ2C-10x100/1 | 101 | 9.8 | 10x100 | Single row and double row | |||
| AMJ2C-10x120/1 | 102 | 9.8 | 10x120 |
