SM busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Model：SM
Screw：M6/M8
Material：DMC,BMC
Fire Rating：UL94-V0
Certificate：CE,REACH,ROHS
Type：Terminal
Customized：Yes
Purpose：Support connecting bus

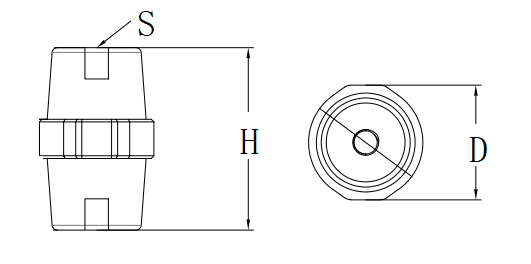

| Model | Diameter(mm) | Height(mm) | Screw | Customized |
| SM20 | 17 | 20 | M5/M6 | According customer's requirement |
| SM25 | 30 | 25 | M5 | |
| SM30 | 32 | 30 | M6/M8 | |
| SM35 | 32 | 35 | M6/M8 | |
| SM40 | 40 | 40 | M6/M8 | |
| SM45 | 36 | 45 | M6/M8 | |
| SM51 | 36 | 51 | M8/M10 | |
| SM60 | 46 | 60 | M8/M10 | |
| SM76 | 50 | 76 | M10/M12 | |
| SM80 | 50 | 80 | M10/M12 | |
| SM100 | 65 | 100 | M10/M12 |
