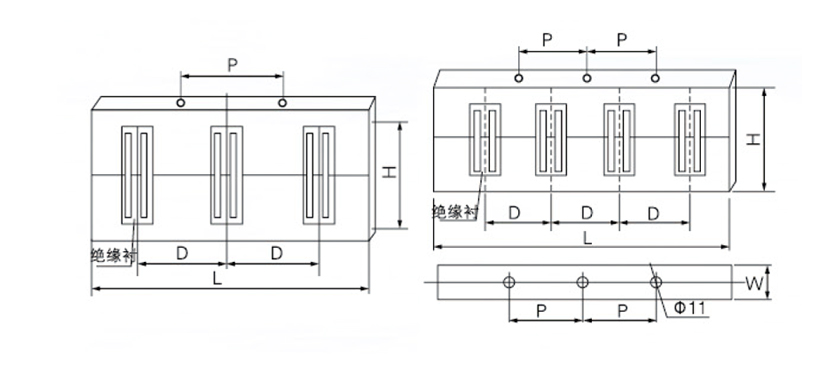

| 产品名称 | 产品型号 | 长度(L) | 厚度(W) | 相数 | 相距(D) | 孔距(P) |
| 绝缘母线框 | PMJ2-3B | 250mm | 36mm | 三相 | 80mm | 80mm |
| 绝缘母线框 | PMJ2-3 | 280mm | 36mm | 三相 | 100mm | 100mm |
| 绝缘母线框 | PMJ3-3 | 330mm | 36mm | 三相 | 110mm | 110mm |
| 绝缘母线框 | PMJ7-4 | 320mm | 36mm | 四相 | 80mm | 160mm |
| 绝缘母线框 | PMJ3-4 | 390mm | 36mm | 四相 | 100mm | 200mm |
| 绝缘母线框 | PMJ8-4 | 505mm | 40mm | 四相 | 120mm | 120mmx2 |
| 绝缘母线框 | PMJ9-4(3x3) | 505mm | 40mm | 四相 | 120mm | 120mmx2 |
| 绝缘母线框 | PMJ10-4 | 600mm | 40mm | 四相 | 150mm | 150mmx2 |
| 绝缘母线框 | PMJ11-4(3x3) | 600mm | 40mm | 四相 | 150mm | 150mmx2 |
| 规格 | 4x40 | 5x50 | 6x60 | 10x60 | 6x80 | 8x80 | 10x80 | 8x100 | 10x100 | 10x120 | 12x120 | 10x125 | 12x125 |
| 高(H) | 90mm | 100mm | 110mm | 110mm | 130mm | 130mm | 130mm | 150mm | 150mm | 170mm | 170mm | 175mm | 175mm |
